fully automatic mgo board machine

FOB Reference Price:Get Latest Price
$30,000.00 - $5,000,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
OYADE
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Retail, Construction works
Place of Origin:
china
Brand Name:
Yurui
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Warranty:
3 years, 12months warranty& whole life service
Brand name:
OYADE
Finished product:
mgo board
Machine capacity:
2000 piece /8hour
Automatic:
high automatic
Power supply:
Electic
Control system:
Simens PLC ; Schneider components; Rittal carbinet
After-sale service:
installation & testing & training
Screw Design:
Double-Screw
Advantage:
double shaft mixer; automatic metering for all raw material
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
We will design mgo board production line loading qty many times, so as to save your sea freight.
1.Firstly use plastic film to wrap and cover the machine;
2.Then pack small parts in plywood box.
3.Marked with required label or shipping mark.
4.Use steel wire rope to fix in the container, so as to avoid damage because of moving.
Port
qingdao
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Video Description
Our factory

The factory is not only NO 1 in configuration ,but also automatic degree in China .


We are building material group company with 8 branches specialized in different building material and machinery manufacturing with 30 years history. our company occupy the finest mgo board production ,formular and the highest configuration machinery equipment in china .

Product Description
Detailed Images
                                                Specifications for mgo board production line
         Capacity
2000pieces/8 hours, calculated based on 1220*2440*8mm

       application

                    interior/exterior wall,floor,ceiling,etc
Famous Brand Used
         German Rittal ,SIEMENS ,Schneider
        site area
                    ≥7000sqm ,High≥7m
  Control system
           PLC simens
   Raw material
      Mgo powder/mgso4/perlite/bamboo/fiber glass mesh
       Band name
                          OYADE
Product component

 Raw material feeding and metering automatic

For the mixtures,we totally have 5 mixers, the first slurry materials mixer and second is the


sanding materials mixer.And the rest part is 3 middle layer mixers .Why we equip 3 middle


layer mixers ? it is because for the mgo board the main part is middle layer materials when


we produce every thick mgo board for example mgo board above 18 mm then if we equip the


 3 mixers middle layer mixer. It will be much more easier and high efficiency during the


production.The mixers are double shaft so it can keep raw materials mixer very evenly .

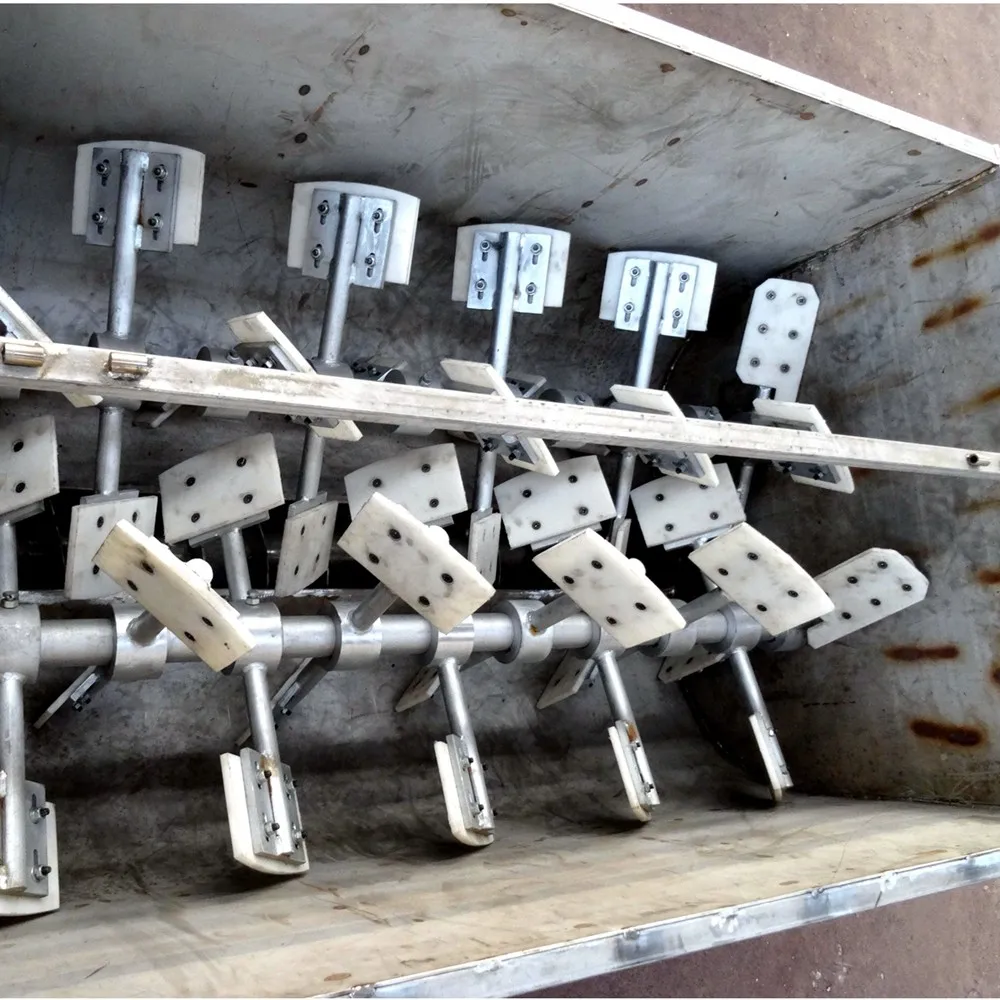

Double shaft mixer


Using unique double shaft mixer,ensuring mixing evenly and no blocking.


Each mixer has a dust collector,and the material is automatically connected to the mixer to avoid dust.

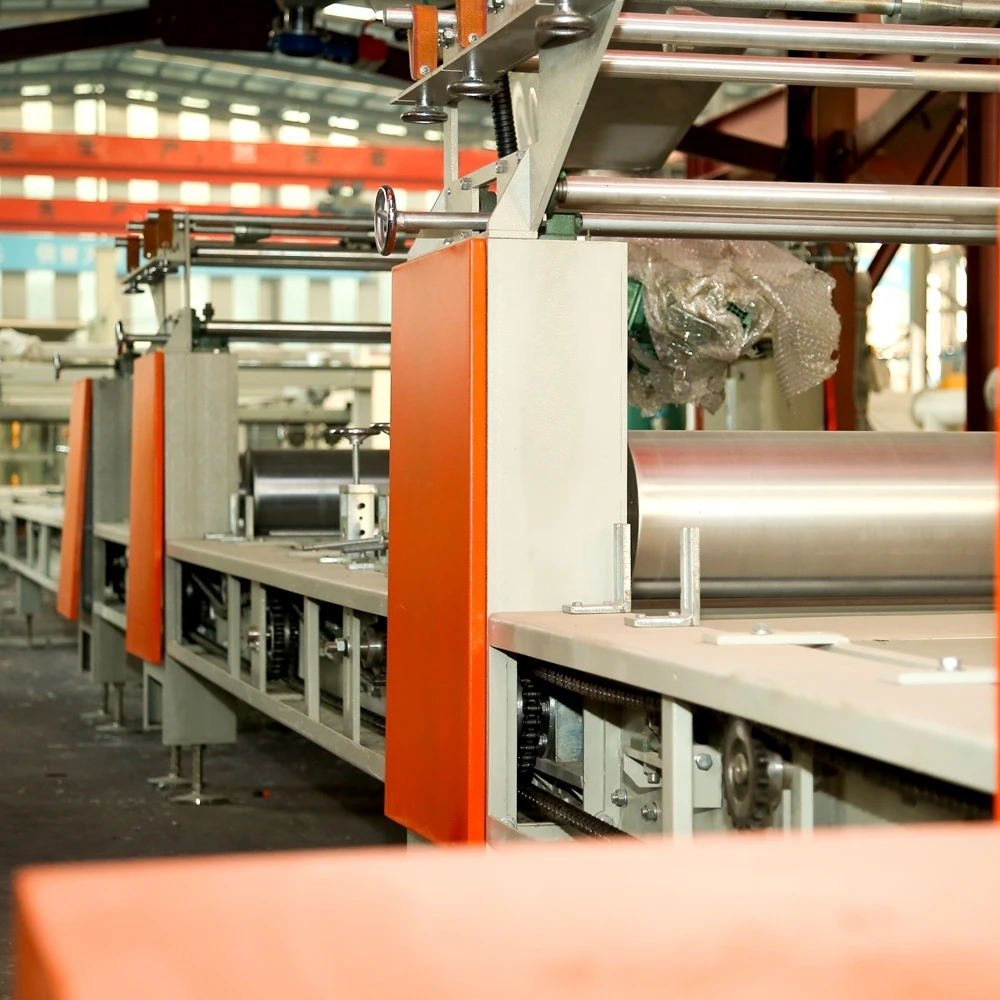

Automatic forming part

This part is mainly production part, we use sucker to suck the PVC mold on the machine.This


 part is release agent. After we put release agent on the PVC mold, it will be very easy to


separate the PVC mold with the board-mgo board. The first layer is slurry materials after the


slurry material there will be two layer mesh, this is middle material and then another 2 layers


 mesh.You can see,we equiped to several fiber glass mesh rollers.It is because some


customers have special requirement on the bending-strength of the mgo board. So we need


to put more layers fiber glass mesh in the board.

Automatic cutting machine


Equirement function and characteristics :Exactly cutting the board into designated


specification during production flow,no damage to the products and moulds,reducing labor


cost and lower working strength .Consists of rack,cutting walking frame,cutting


saw,clamping part,open sections,length part,electrical control system ect.

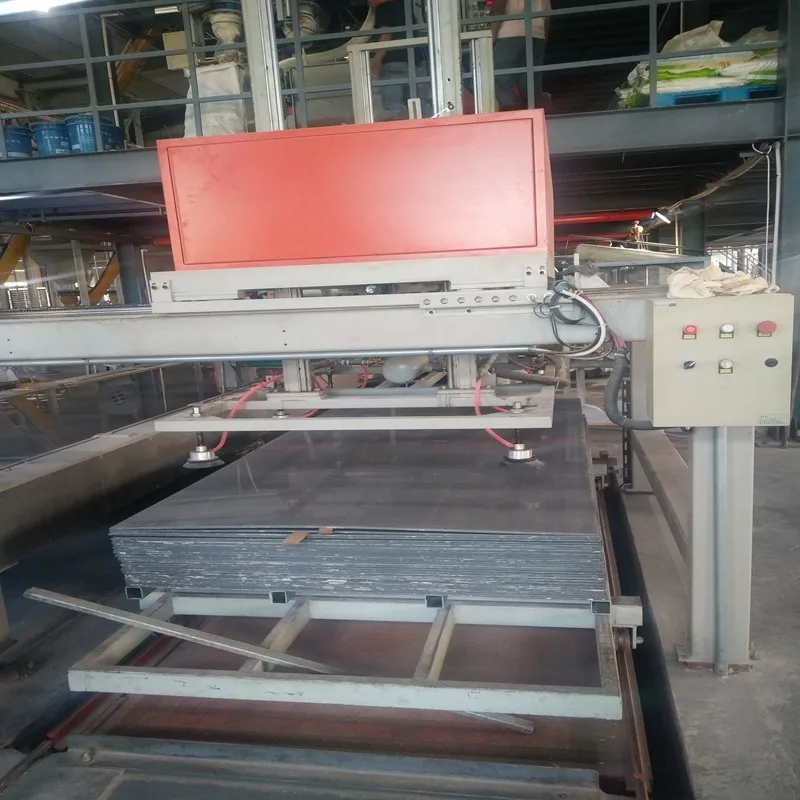

Full automatic mould releasing


Automatically stack board board together,automatically cleaning and curing the used mold,automatically stracking mold for stand-by.

Video introduce

Here i share with you the mgo board production process video, which could make you have a clear understanding about how this machine works. https://youtu.be/-tBHxhdW4fc

Our Service

1. Business communication

2. Customer visiting

3. Layout design

4. Sign contract

5. Foundation design & Manufacturing

6. Inspection&No material testing

7. Installation

8.Commissioning
