3-25mm 2000pieces/shift magnesium oxide board mgoboard production machine manufacturing process

FOB Reference Price:Get Latest Price
US $290,000-1,000,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
10 Set/Sets per Year
Port:
Qingdao
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
SENYD
Model Number:
SENYD-2017 magnesium oxide board production machine
After-sales Service Provided:
Engineers available to service machinery overseas
Product thickness:
3mm-25mm
Machine capacity:
2000pieces/shift, adjustable
After-sale service:
installation & testing & training
Warranty:
12months warranty& whole life service.
Automation:
Semi /high /full automatic
Name:
magnesium oxide board production machine
Advantage:
double shaft mixer; automatic metering for all raw material
Brand:
SENYD
Control system:
Simens PLC ; Schneider components; Rittal carbinet
Raw material:
mgo; MgCl2/MgSO4;perlite; saw dust, etc
Packaging & Delivery
Packaging Details
We will design loading qty many times, so as to save your sea freight.
1.Firstly use plastic film to wrap and cover the machine;
2.Then pack small parts in plywood box.
3.Marked with required label or shipping mark.
4.Use steel wire rope to fix in the container, so as to avoid damage because of moving.
Delivery Time
60days

magnesium oxide board production machine





 Equipment parameter for mgo plate machine

Brand

SENYD

Capacity

2000pieces/shift/8hours, calculated based on 1220*2440*8mm

Configuration

Simple;semi automatic;full automatic

Raw material

MGO; Mgcl2 /magnesium sulfate ; perlite; saw dust, etc.

Finished board size

Standard: thickness 3-22mm; width 600-1220mm; length ≤3050mm.

Special sizes can design specially.

Finished board type

Can produce both sanding MGO board, non-woven MGO board.

Voltage design

According to clients‘ requirements.





FAQ

Q:Do you supply spare parts?
A:Excellent easy broken parts support for buyers. Easy broken parts guarantee for one year.
Q:Will you provide trainning?
A:The training is free of charge , and our engineer will be on duty to train your worker.
Q:How will you provide installation&commissioning?
A:Will send 2~4engineers (adjustable according to the degree of automatic )to installall and testing the whole line for you
Q:How long is the delivery time?
A:Generally 45-90working days for one set. But it differs from configuration and our schedule.
Q:How much land do I need?
A:Considering the process and capacity, we suggest at least 7000sqm for 2000pieces/day line.



Company Information





Shandong Yurui International Trade. Co., Ltd. is specialized in designing and manufacturinmgo board machine

quotation priceis the separate international trade department of our factory. With rich experience in

mechanical design and manufacturing, professional import and export services, we commitment to provide the

best integrated solutions of mgo fire boards equipemnt for customers.



Our general engineer has over 18years experience in MGO board field, proficient in the process from No.1

generation MGO board production until the newest MGO board machine design/manufacturing. Main engineers

all have over 10years experience in MGO board field.



1. Sales team: 24hours online for you

2. Designing team: design the best layout for you

3. Manufacturing team: promise the best quality with high precision

4. Installation & commissioning team: finish the installation and testing of whole line

5. Process team: promise you the qualfied formula.



We, promises you a 100% perfect project.



Our Services





Full life-cycle value services

Production line design, cost accounting, installation and operation, equipment maintenance and whole life cycle technical support

All-around technical service:

We provide technical formula for clients, to help clients to occupy the leading position in the market.

Complete data specification:

Provide production line equipment technical data and instructions, and provide the formula.



Quality commitment:

Our company regards product quality as the lives of enterprises, the main components and wearing parts are made of high quality wear-resistant materials and advanced processing technology



Spare parts:

Wearing parts warranty for one year, and our company perennial supply of device of wearing parts.

Trade Service:

We can help the customer to do the consignment and the relevant procedure for import and export.









Quality Show



Full automatic design

Name: Pneumatic conveying and mixing system

Brand: SENYD

Original: China

We can design and manufacture full automatic pneumatic conveying system and raw material mixing system. All raw material are metered automatically with high precision.

Scientific ratio and accurate weight measurement promise the stable formula

Double shaft mixer

Name: Mixer
Brand: SENYD
Original: China

Double shaft type, using unique double shaft mixer, ensuring mixing evenly and no blocking, this is our patent technology

Multifunctional forming system

Name: Forming system
Brand: SENYD
Original: China

Incluing all configuration of automatic feeding slurry, automatic laying cloth, automatic flatting, 5groups of roller, second -pressing.

Accurate cutting machine

Name: Forming system automatic cutting machine
Brand: SENYD
Original: China

Accurate cutting the fiberglass , no damage to the PVC mould . This is our very mature technology , using sensor to control it with precision .

PLC control and international bran only
Name: Electric control system
Brand: German Rittal; SIMENS; Schneider
Original: German
We use international famous brands only: electric control cabinet are German Rittal brand; frequency transformer and PLC are SIEMENS brand; low-voltage electrical apparatus are Schneider brand;

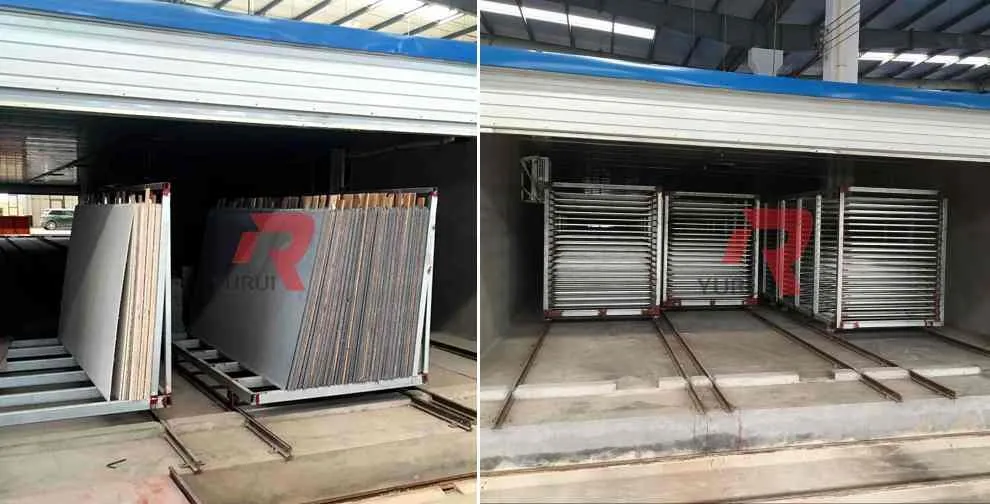

Unique curing process

Name: Curing room
Brand: SENYD
Original: China
We design to be two times of curing process, which promising the complete chemical reaction of MGO and MgCl2, so as to ensure stable performance of finished products.

Unique finished products

Can produce both common MGO board and sanding MGO board. We are the only factory mastering the technology of qualified sanding MGO board and its machine.

3m second-elevating displacement automatic board loading machine

Used to automatically send PVC mould and semi-finished board into semi-finished board cage vehicle ; and used fo demoulding the board from PVC mould. Our unique technology.



Packaging & Shipping

 Package & loading

We will design loading qty many times, so as to save your sea freight.

1

Firstly use plastic film to wrap and cover the machine;

2

Then pack small parts in plywood box.

3

Marked with required label or shipping mark.

4

Use steel wire rope to fix in the container, so as to avoid damage because of moving.
