Vertical type full /semi automatic eps cement sandwich panel machine production line

FOB Reference Price:Get Latest Price
US $40,000-350,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
30 Set/Sets per Year
Port:
Qingdao China
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Wall Panel Machine, wall panel; roof; floor;
Production Capacity:
30000-500000 M2/YEAR
Place of Origin:
Shandong, China (Mainland)
Brand Name:
OYD
Model Number:
OYD
Voltage:
380V/50HZ, 380V 60Hz, adjustable
Power(W):
100KW
Dimension(L*W*H):
3030*1190*2500
Weight:
50T
Features:
Easy Operation
Certification:
ISO9001
Warranty:
One Year, 1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
eps cement sandwich panel machine production line
Certificate:
ISO9001:2000
Capacity:
30000-600,000 sqm per year
Automation degree:
full-automatic and semi-automatic
Installation:
guided by our engineers
Raw material:
cement; sand; eps; flysh, etc
Advantages:
automatic unloading panel
Packaging & Delivery
Packaging Details
We will design the loading of eps cement sandwich panel machine for many times, so as to save your sea freight:
1.Firstly use plastic film to wrap and cover the machine;
2.Then pack small parts in plywood box.
3.Marked with required label or shipping mark.
4.Use steel wire rope to fix in the container, so as to avoid damage because of moving.
Delivery Time
35-70working days, according to configuration
Video Description
Product Description

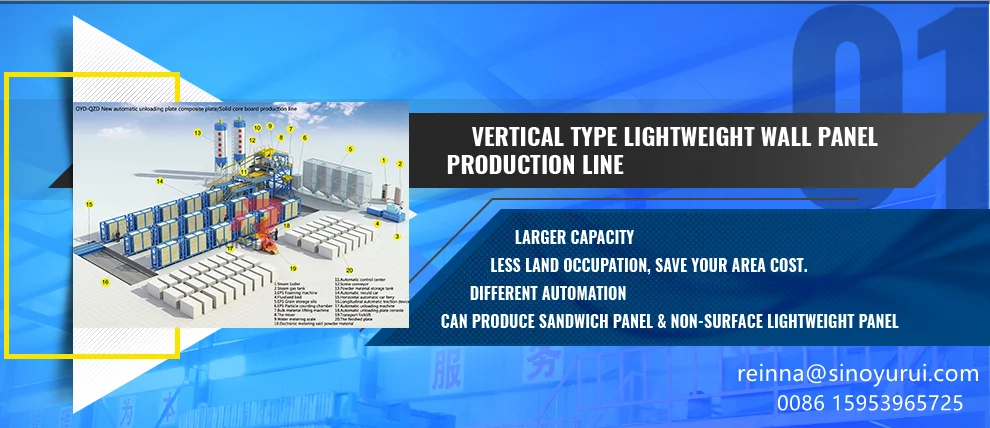

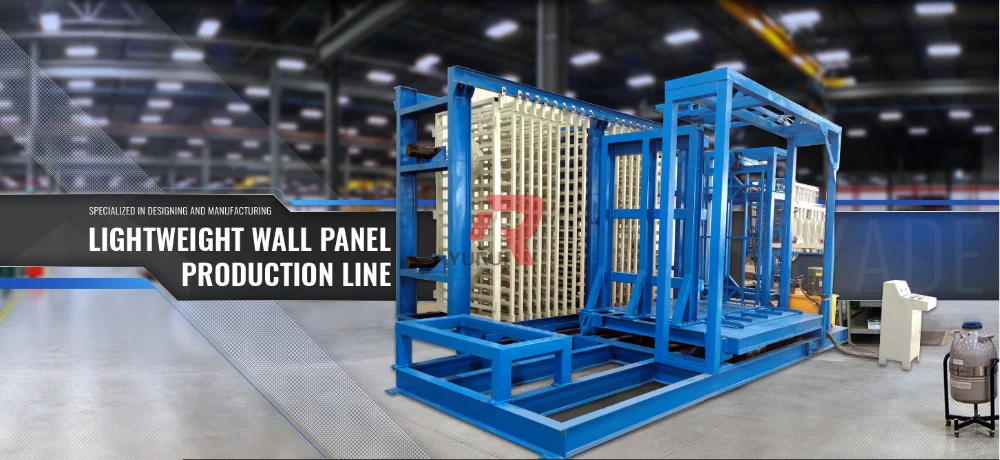

Vertical type full /semi automatic eps cement sandwich panel machine production line

This is our vertical type eps cement sandwich panel production line, have 3different types, can produce both lightweight sandwich panel and solid panel, different automatic degree, and different investment cost.

Parameters for eps sandwich panel production line

Capacity
≥1 mould car, around 20000sqm/year.
Automatic degree
manually; semi automatic; full automatic
Finished products
1. Composite board/sandwich board, with surface board
2. Lightweight solid panel, without furface board
Surface board types
1. Calcium silicate board
2. Fiber cement board
3. Mgo board
Raw materials
Cement+fly ash/eps/ceramsite/sand, etc (optional, can choose to add or not add)
Panel width
610mm/1220mm, special sizes need to be customized
Panel length
2440-3600mm , special sizes need to be customized
Panel thickness
50-250mm , special sizes need to be customized
Finished products

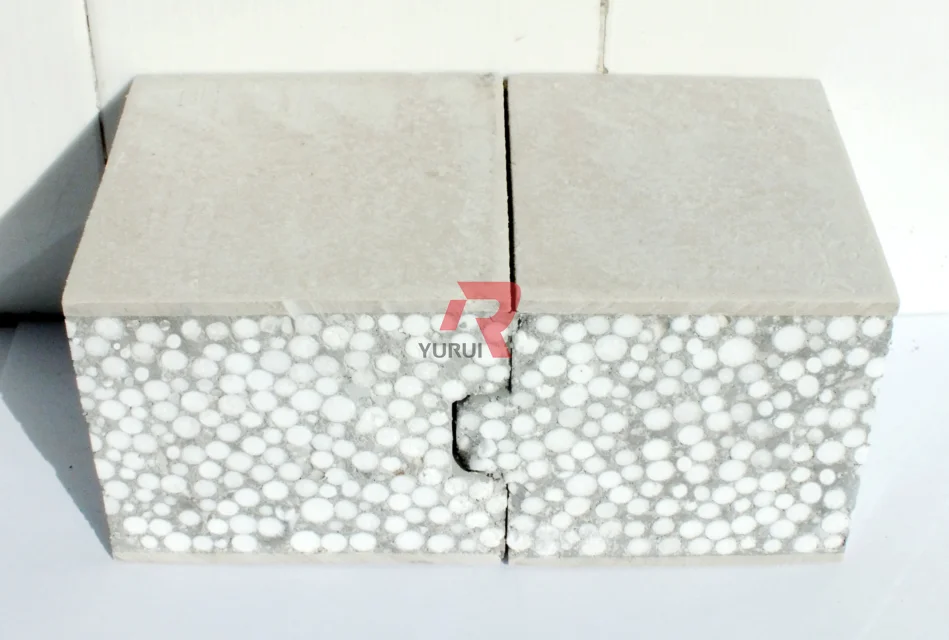

Type-1

Lightweight composite sandwich wall panels

Surface panel can be:

1. Calcium silicate board
2. Fiber cement board
3. Mgo board

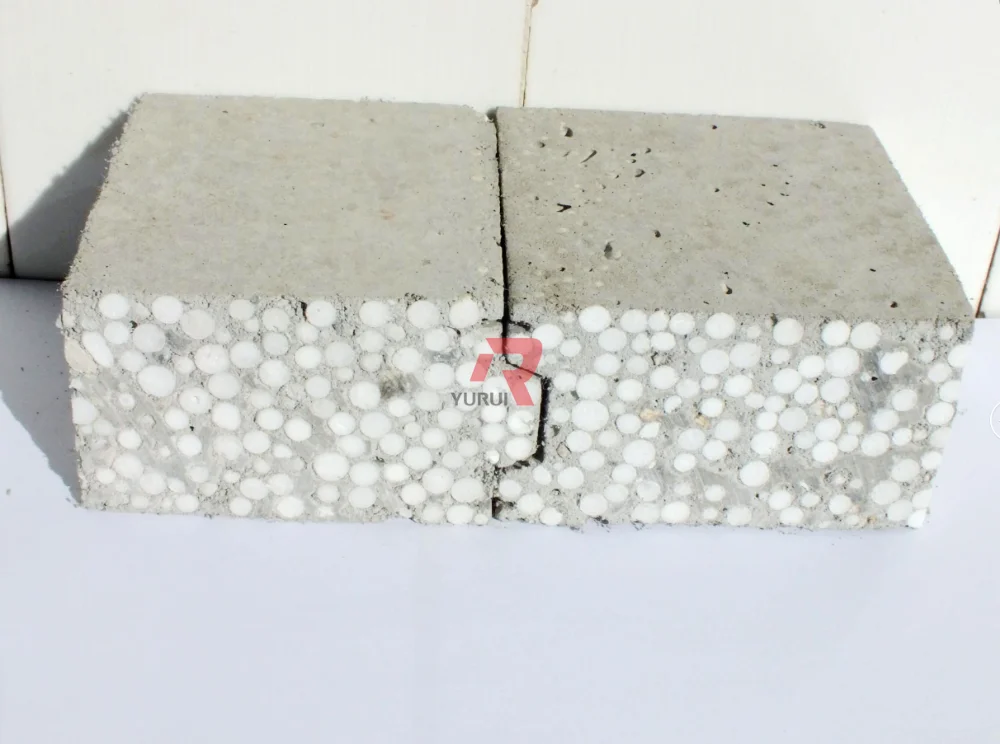

Type-2

Solid light weight composite wall panels

Advantages:

1. More lightweigt

2. Save cost

3. Size is flexible

Manufacture strength

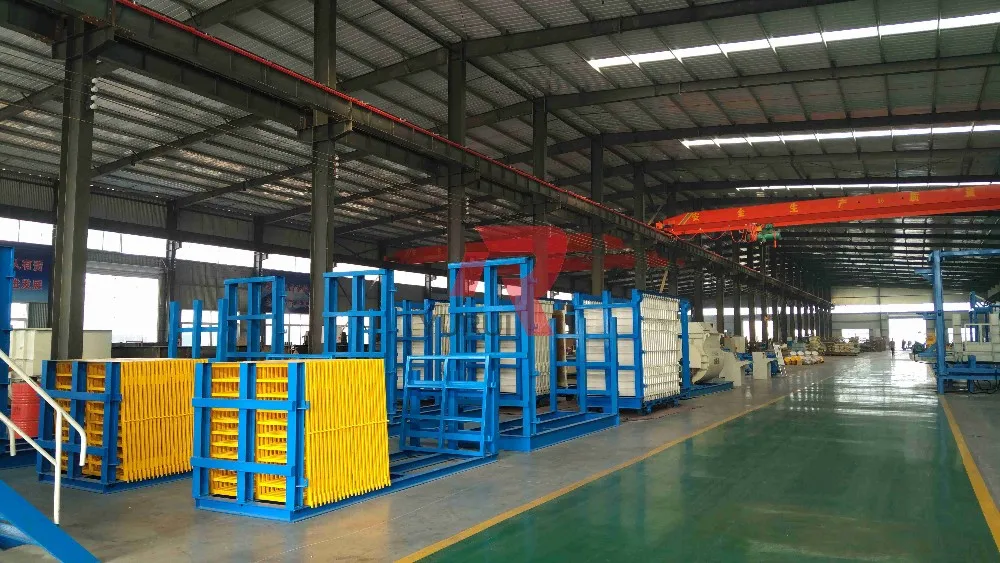

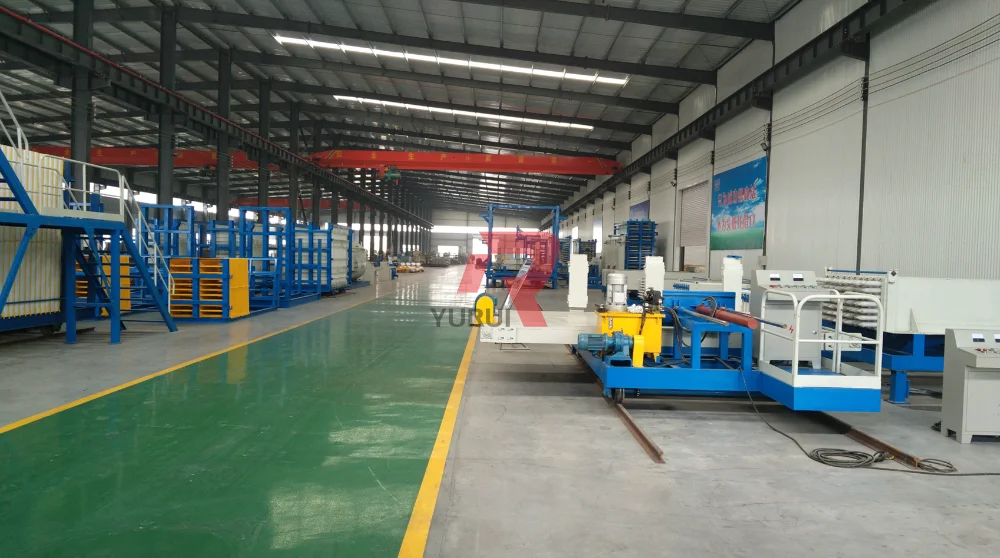

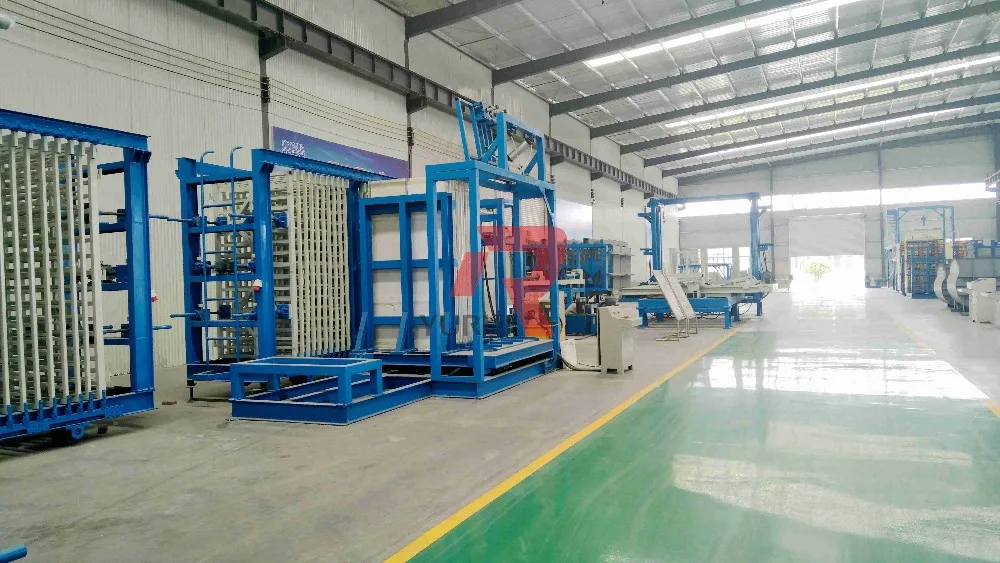

Workshop view

As a professional eps sandwich panel machine manufacturer , we have a vertical processing center, boring machines, milling machine, drilling machines, planers, argon welders and so on. Good processing equipment makeshift good machines.

Fine workmanship

High precision

Reliable quality

Beautiful appearance

Equipment types

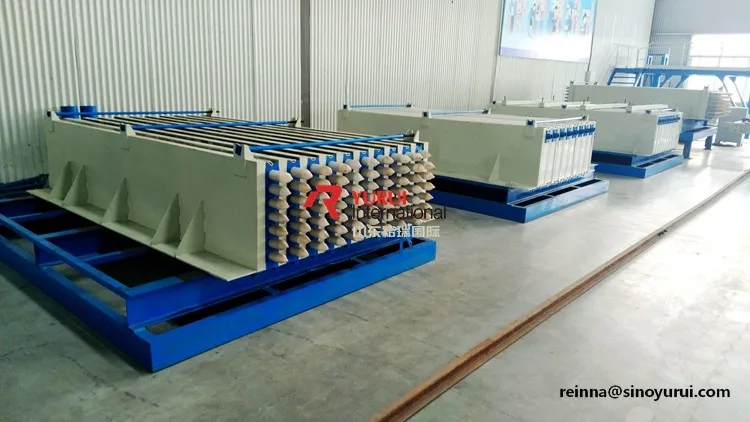

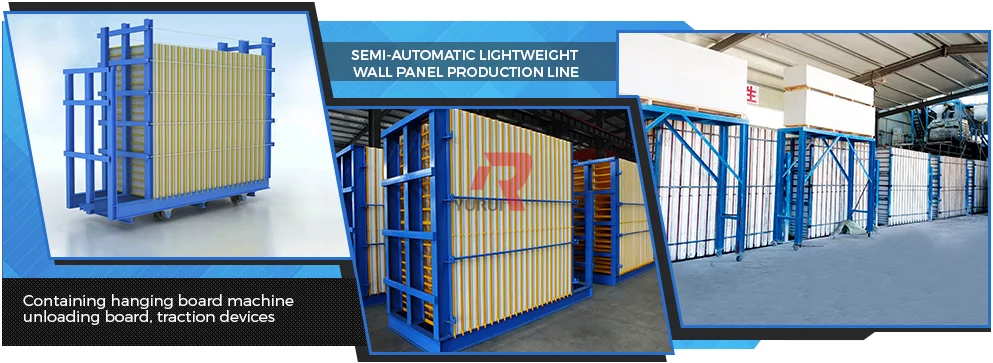

Type-1 Semi automatic eps cement sandwich panel production line

The semi automatic production line, using the lifting device to unloading the panel, suited for smaller capacity and lower investment.

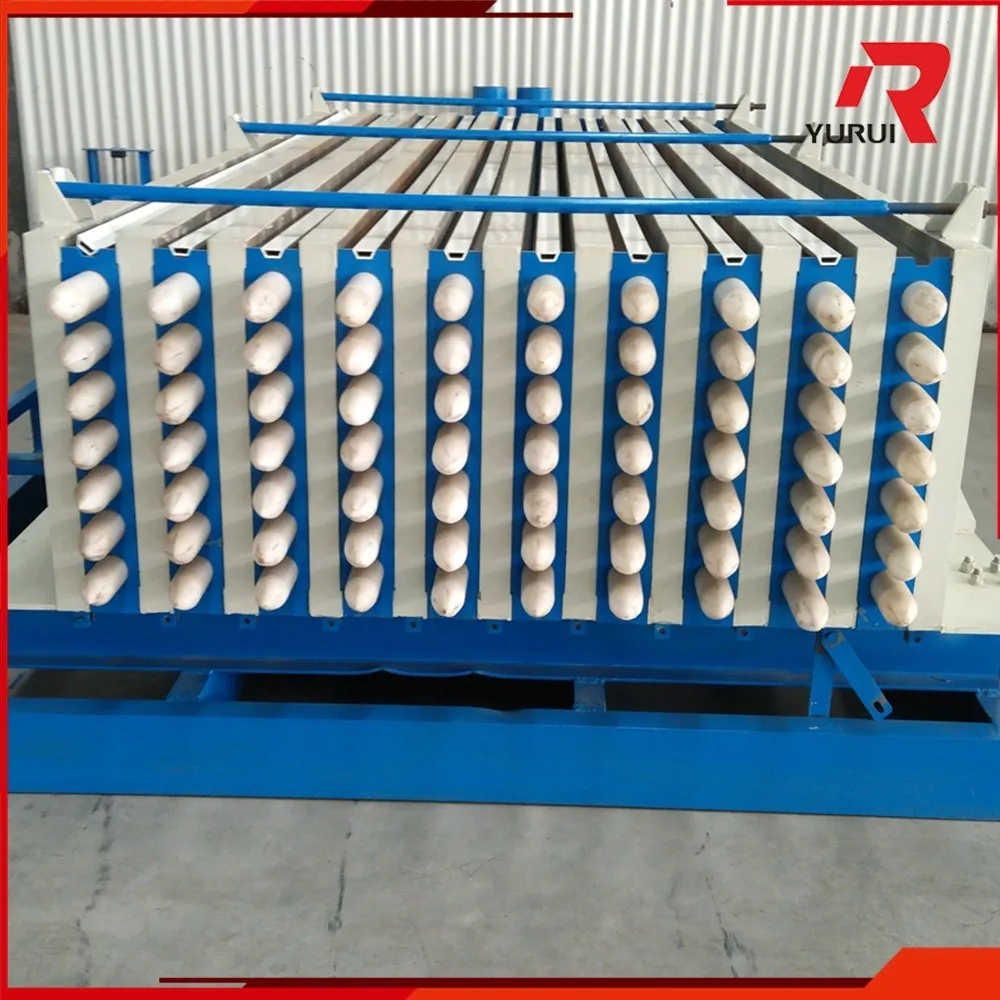

Type-2 Full automatic lightweight concrete wall panel forming machine

This is our unique design, can full automatically demoulding, 20panels/time. So can save a lot of your labor cost.

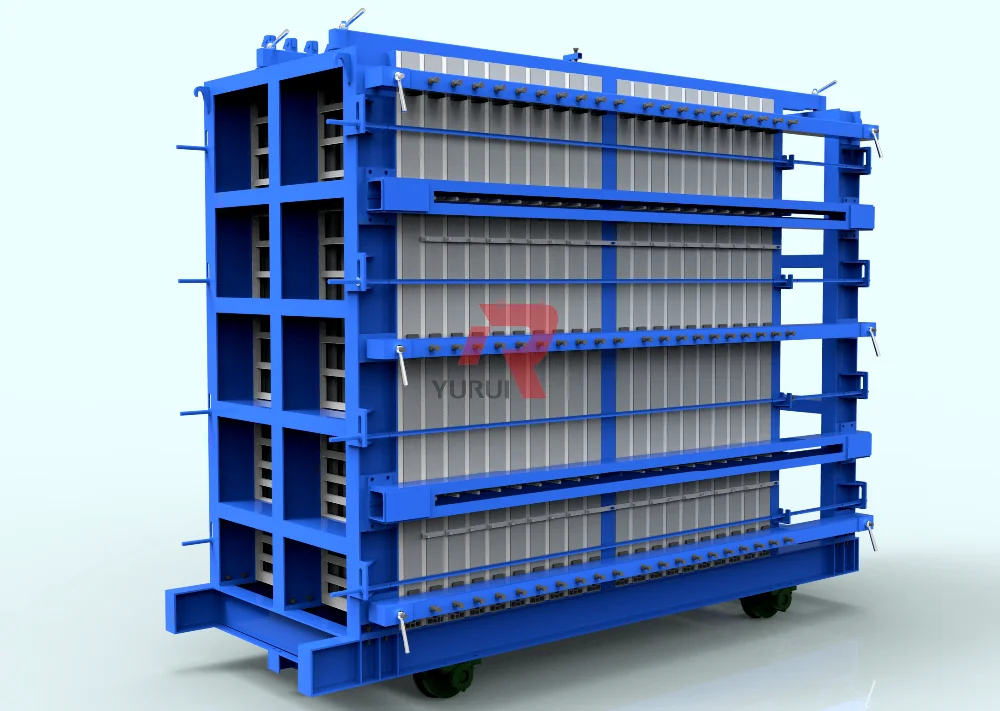

Type-3 Turn-over type full automatic eps cement sandwich panel mould machine

This is our unique design, can automatically over-turn the mold car when feeding mold; then vertical it when feeding machteril; then over-turn it when demolding. After demolding, can automatically stacking and aligning panels. So can save a lot of your labor cost.
