full automatic 2000pieces/shift mgo board magnesium oxide wallboard production line manufacturing process

FOB Reference Price:Get Latest Price
US $300,000-1,100,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
10 Set/Sets per Year
Report Suspicious Activity
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Model Number:
SENYD-2017 mgo board production line
After-sales Service Provided:
Engineers available to service machinery overseas
full automatic
Machine capacity:
After-sale service:
installation & testing & training
12months warranty& whole life service.
Product thickness:
3-25mm, adjustable
mgo board production line
double shaft mixer; automatic metering for all raw material
Control system:
Simens PLC ; Schneider components; Rittal carbinet
Raw material:
mgo; MgCl2/MgSO4; perlite; saw dust
Packaging & Delivery
Packaging Details
We will design mgo board production line loading qty many times, so as to save your sea freight.
1.Firstly use plastic film to wrap and cover the machine;
2.Then pack small parts in plywood box.
3.Marked with required label or shipping mark.
4.Use steel wire rope to fix in the container, so as to avoid damage because of moving.
Delivery Time
Product Description

Unique characteristic

Modular design; independent section commissioning; double roller drive ;rolling forming process stepless frequency speed adjustment ,Simens PLC control.

Brand name
SENYD brand
2000pieces/shift/8hours, calculated based on 1220*2440*8mm
Full automatic & semi automatic
Raw material
MGO; Mgcl2 /MgSO4; perlite; saw dust, etc.

Finished board size
Standard: thickness 3-22mm; width 600-1220mm; length ≤3050mm.
Special sizes can design specially.
Finished board type
Can produce both sanding MGO board, non-woven MGO board.
Voltage design
According to clients‘ requirements.
Our Company


Shandong Yurui International is specialized in designing and manufacturing magnesium oxide board manufacturing process, lightweight EPS cement wall panel production line and gypsum products production lines.


Our general engineer has over 20years experience in mechanical industry, proficient in the newest machinery design/manufacturing. Other main engineers all have over 10years experience .With rich experience in mechanical design and manufacturing, professional import and export services, we commitment to provide the best integrated solutions of production line for customers.


After installation and commissioning, we will provide technical formula suitable with client’s demand, ensuring clients can produce qualified finished products. Additionally, we will help local experienced engineers for one year to master the production process.Our professional sales team, designing team, manufacturing team, installation team, process team, service team, promises you a 100% perfect project.

Quality show

Full automatic design

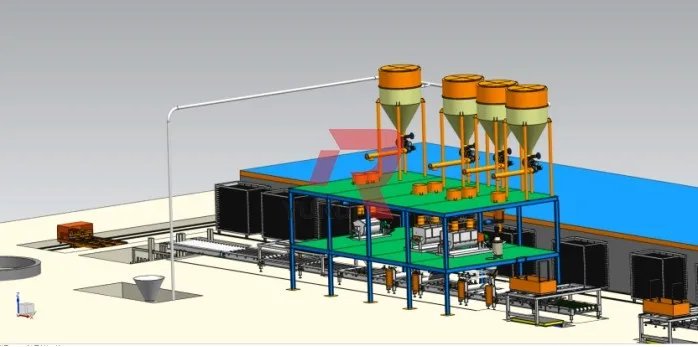

Name: Pneumatic conveying and mixing system

Brand: SENYD

Original: China

We can design and manufacture full automatic pneumatic conveying system and raw material mixing system. All raw material are metered automatically with high precision.

Scientific ratio and accurate weight measurement promise the stable formula

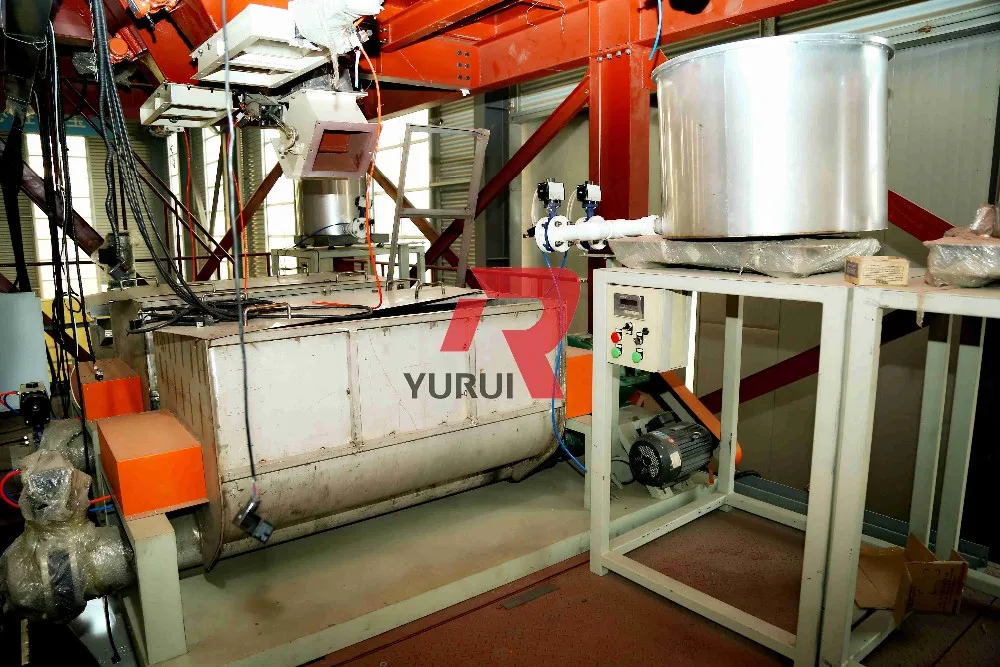

Double shaft mixer

Name: Mixer
Brand: SENYA
Original: China

Double shaft type, using unique double shaft mixer, ensuring mixing evenly and no blocking, this is our patent technology

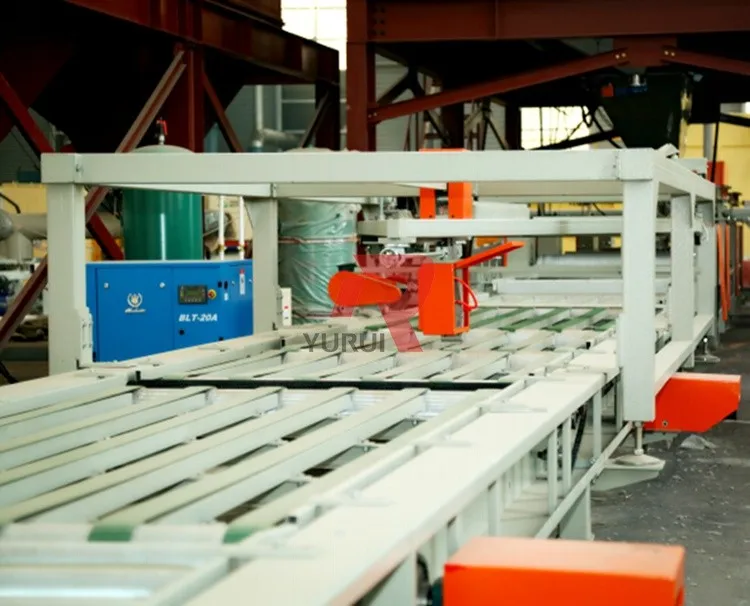

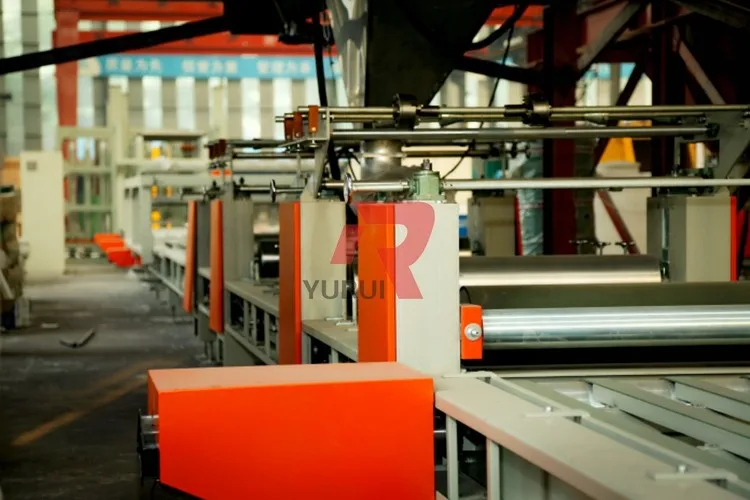

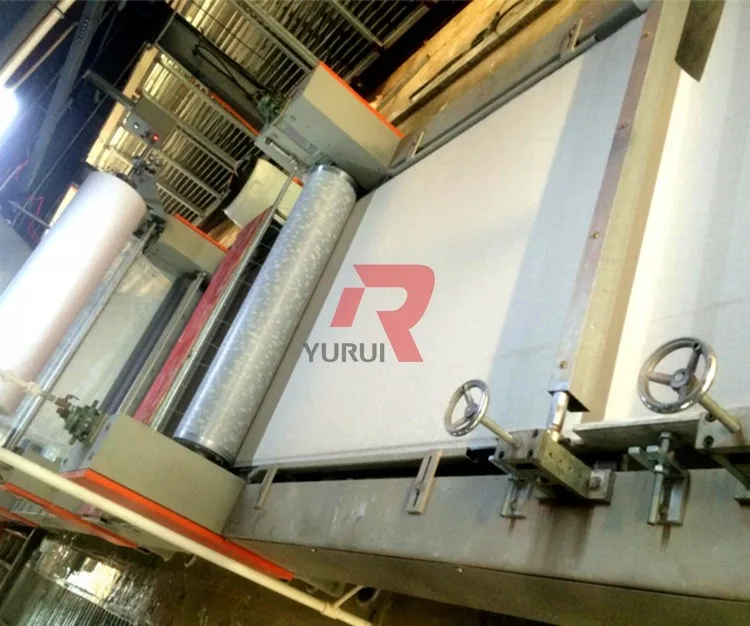

Multifunctional forming system

Name: Forming system
Brand: SENYD
Original: China

Incluing all configuration of automatic feeding slurry, automatic laying cloth, automatic flatting, 5groups of roller, second -pressing.

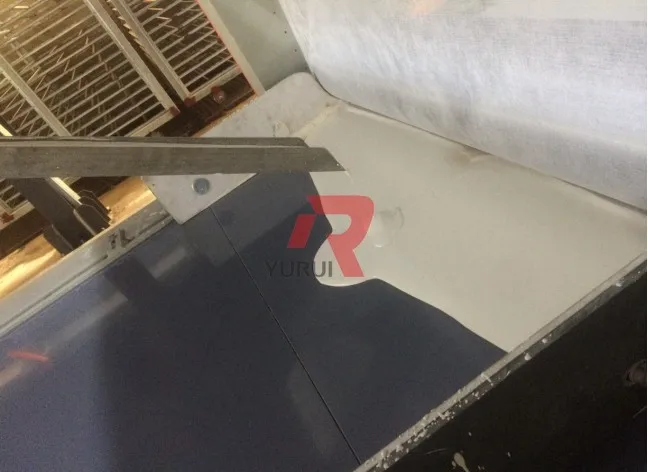

Accurate cutting machine

Name: Forming system automatic cutting machine
Brand: SENYD
Original: China

Accurate cutting the fiberglass , no damage to the PVC mould . This is our very mature technology , using sensor to control it with precision .

PLC control and international bran only

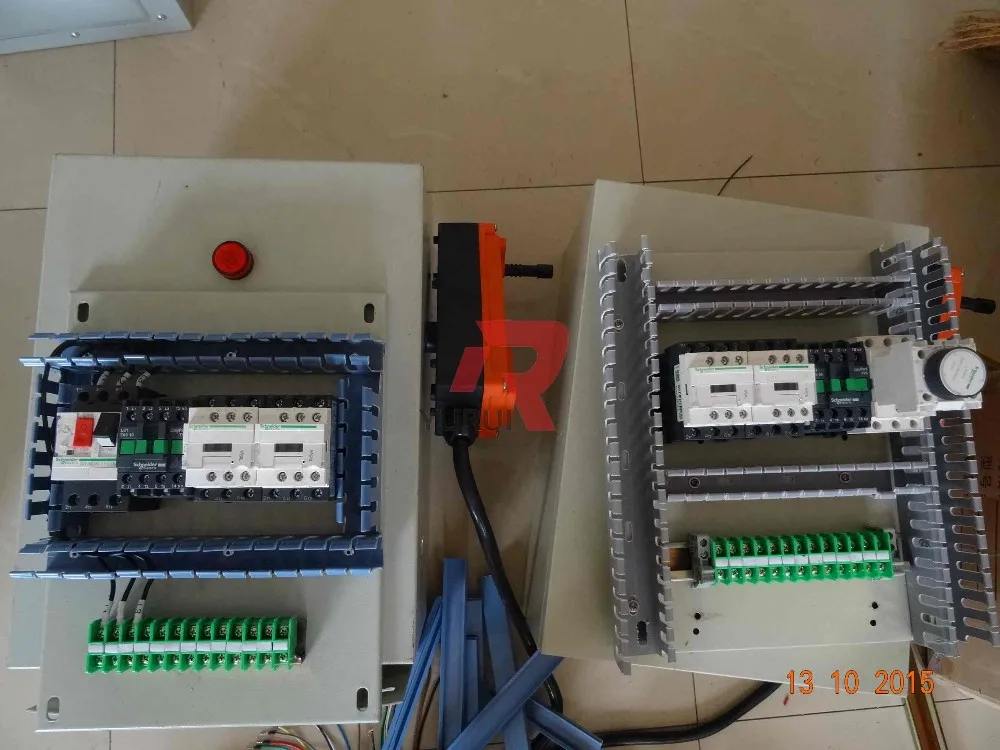

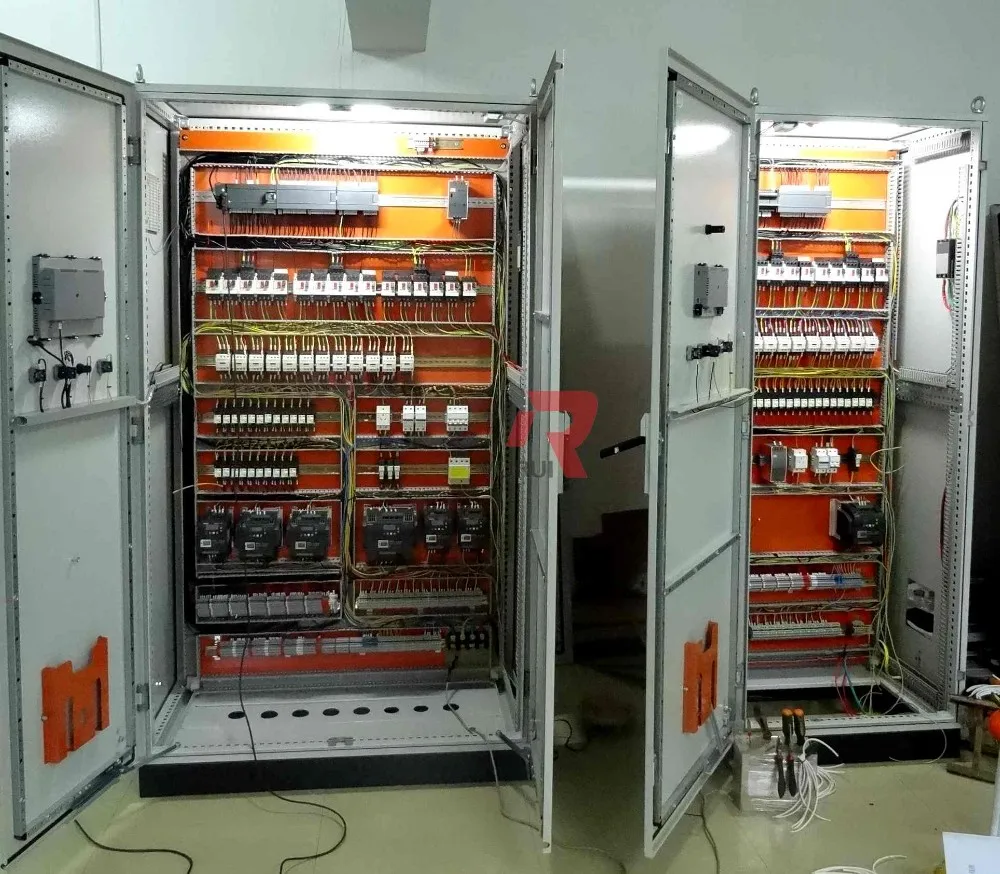

Name: Electric control system
Brand: German Rittal; SIMENS; Schneider
Original: German
We use international famous brands only: electric control cabinet are German Rittal brand; frequency transformer and PLC are SIEMENS brand; low-voltage electrical apparatus are Schneider brand;

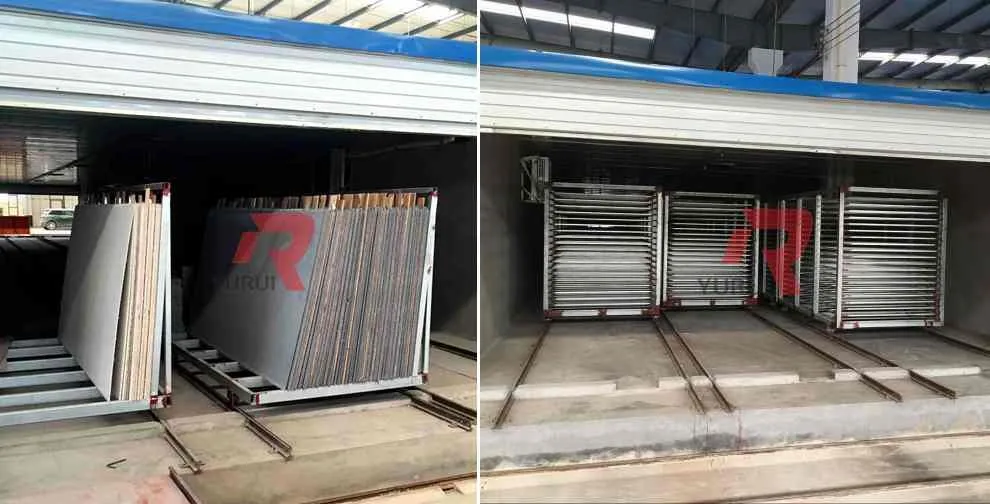

Unique curing process

Name: Curing room
Brand: SENYD
Original: China
We design to be two times of curing process, which promising the complete chemical reaction of MGO and MgCl2, so as to ensure stable performance of finished products.

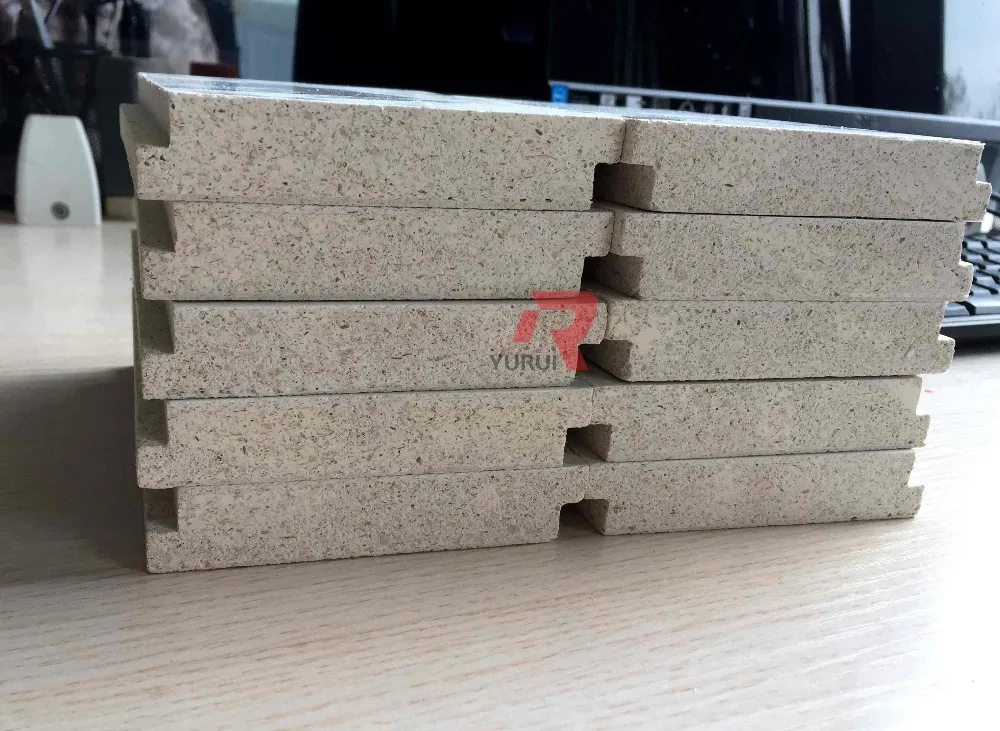

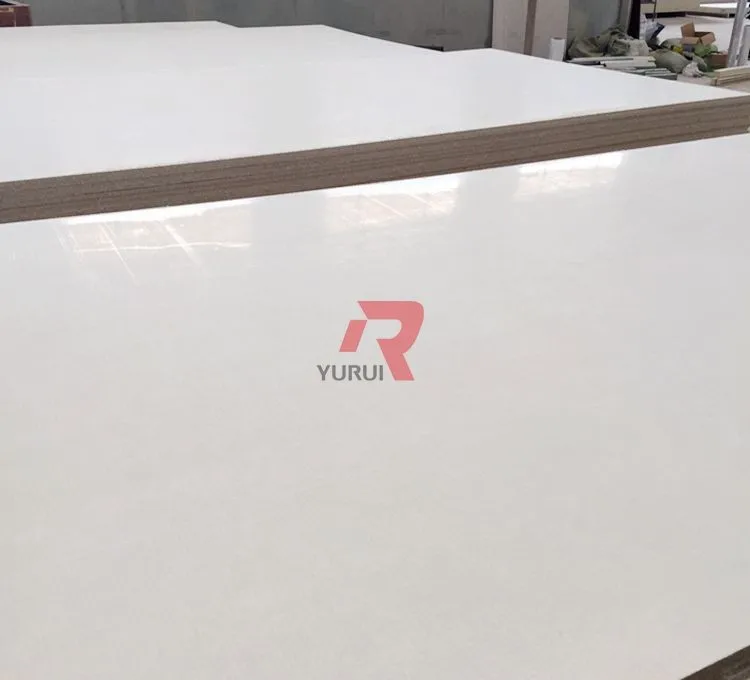

Unique finished products

Can produce both common MGO board and sanding MGO board. We are the only factory mastering the technology of qualified sanding MGO board and its machine.

MGO board formula

After installation and commissioning, we will provide MGO board formula suitable with client’s demand, ensuring clients can produce qualified MGO board. Additional, we will help local experienced engineer for one year to master the production process.

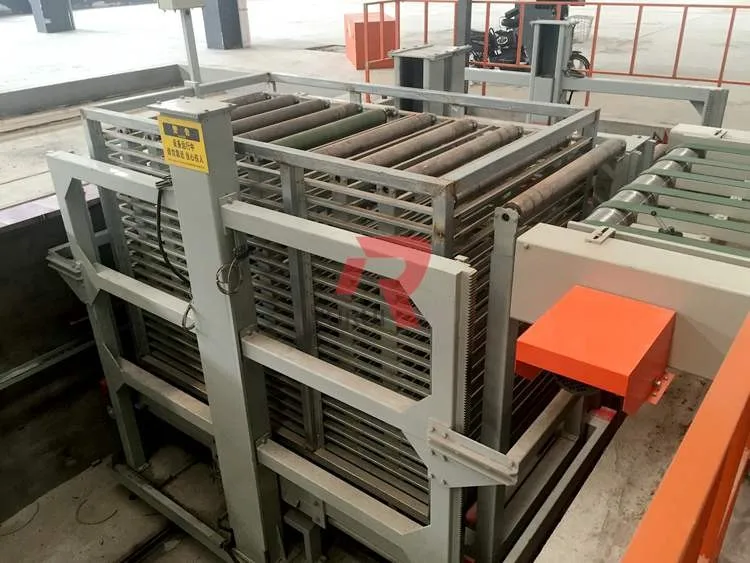

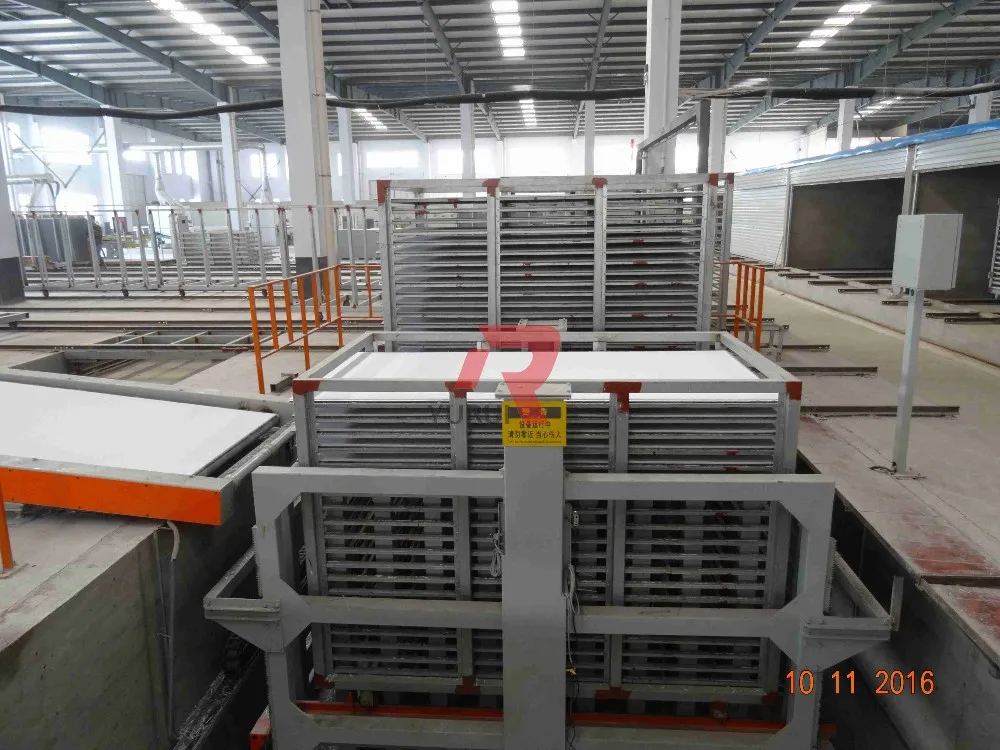

3m second-elevating displacement automatic board loading machine

Used to automatically send PVC mould and semi-finished board into semi-finished board cage vehicle ; and used fo demoulding the board from PVC mould. Our unique technology.

Our Service

Full life-cycle value services

Production line design, cost accounting, installation and operation, equipment maintenance and whole life cycle technical support

All-around technical service:

We provide technical formula for clients, to help clients to occupy the leading position in the market.

Complete data specification:

Provide production line equipment technical data and instructions, and provide the formula.

Quality commitment:

Our company regards product quality as the lives of enterprises, the main components and wearing parts are made of high quality wear-resistant materials and advanced processing technology

Spare parts:

Wearing parts warranty for one year, and our company perennial supply of device of wearing parts.

Trade Service:

We can help the customer to do the consignment and the relevant procedure for import and export.

Packing & Delivery

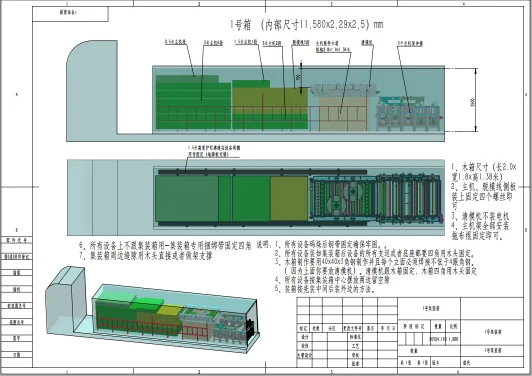

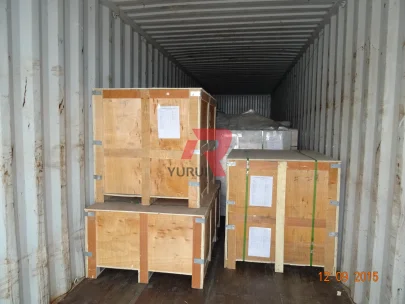

Loading plan


We will design loading qty many times, so as to save your sea freight. You can see from attached design for loading.

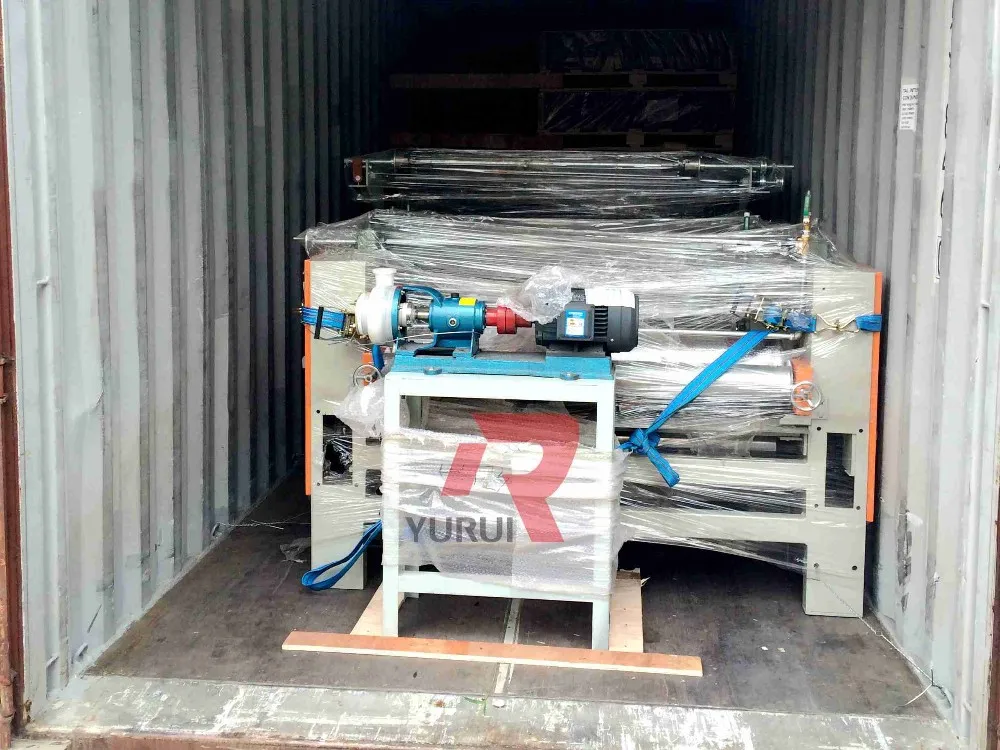

Packaging details

1. Firstly use plastic film to wrap and cover the machine;
2. Then pack small parts in plywood box.
3. Marked with required label or shipping mark.
4. Use steel wire rope to fix in the container, so as to avoid damage because of moving.
Question:How many projects have you installed?
Reply: we have installed over 100projects in domestic and abroad.
Question:How many years experience do you have in mgo field?
Reply: Our general engineer has around 20years experience; all others have over 10years experience.
Question:How will you provide installation&commissioning?
Reply: Will provide 2~4persons(adjustable according to configuration )for installation and testing.
